Server Console

The Server Console opens a command window with environment variables preset and paths configured for Uniform Server utilities. Apart from cosmetics, it is identical to a standard command window.

This page focuses on using the Server Console. It is not intended as a definitive guide, but just an introduction to show you how to access and run server utilities, such as the MySQL client.
Note: To run a MySQL client, the preferred method is to use the dedicated MySQL Console.

Command window - background

Uniform Server Zero XV is a portable WAMP stack; each component provides a number of command line utilities. These command line utilities can be run using a standard command window (cmd). The process is tedious, as the following example demonstrates; you need to change the working directory to the folder containing the utility to be run and set any environment variables as required.

How to run a standard command window

This example uses the MySQL client to demonstrate how to run command line utilities using the standard command window. MySQL client allows you to run SQL commands; for example, to create or delete databases.

To open a standard command window, run the cmd command from the start menu as described below. From the command window, navigate to the folder containing the MySQL utility program and from this folder, run the MySQL Console utility.

Note 1: The path where you installed The Uniform Server Zero XV may be different; substitute your path as appropriate.
Note 2: To run MySQL utilities, you must have the MySQL server running.

  1. Press the Windows + R keys - Opens the run menu.
  2. Type cmd and click OK - Opens a standard command window.
  3. Type following lines into the command window:
    cd \
    cd C:\UniServerZ\core\mysql\bin - Substitute path as appropriate.
  4. Run the utility by typing the following:
    mysql -h127.0.0.1 -uroot -proot
  5. Since we are not going to use the utility, close it by entering exit

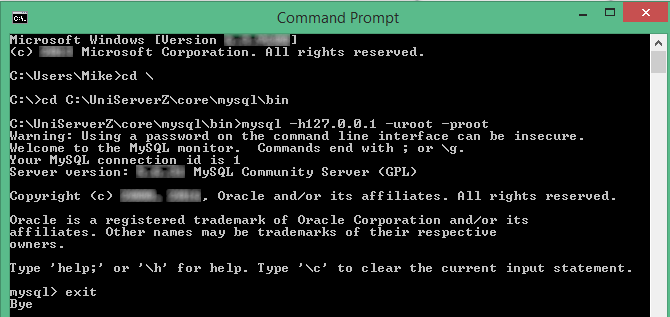

The dialogue in the command window looks similar to that on the right.

   Standard command window

Running a command window from the host PC can become tedious, especially when running servers from a USB stick or moving servers to a different location because the paths will be different. The Server Console removes these steps; see below.

Server Console

The Server Console opens a command window with environment variables preset and paths configured for server utilities, removing the above steps.

To run a server command-line utility, all that is required is to enter the command name and any parameters. For the above example, proceed as follows:

  1. Start UniController.
  2. Start MySQL server: click Start MySQL button.
  3. Start Command Console: click Server Console button
  4. Run the utility by typing the following:
    mysql -h127.0.0.1 -uroot -proot
  5. Since we are not going to use the utility, close it by entering exit

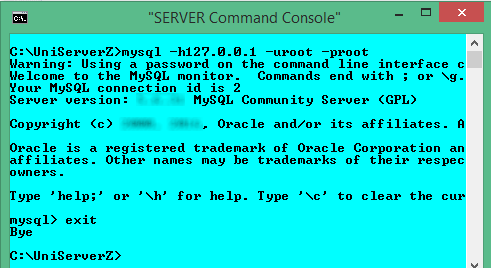

The Server Console, with its pre-defined paths, makes running utilities easier than using the standard command prompt.

You can access the MySQL server utilities as follows:

  • mysql.exe - MySQL client, runs SQL commands
  • mysqladmin.exe - MySQL admin
  • mysqldump.exe - Database dump
   Server Console

MySQL Console

The MySQL client is a very popular admin tool; Uniform Server Zero provides a dedicated menu button (MySQL Console) that directly runs this utility in a console window.

  1. Start UniController
  2. Start MySQL server: click Start MySQL button
  3. Start MySQL Console: click MySQL Console
  4. Since we are not going to use the utility, close it by entering exit

Note 1: The MySQL Console button is enabled only when the MySQL server is running.

Note 2: The MySQL Console runs a server console and the following command line:
mysql.exe --host=localhost --port=3306 --user=root --password=root
Parameters used are automatically extracted from current MySQL server configuration.
The above command line shows default MySQL server configuration parameters.

Note 3: The MySQL client (mysql.exe) allows you to run SQL commands, for example to create or delete databases.

   Standard command window

Server Utilities - View help information

Each server utility contains a help facility showing parameters that can be used. The following lists utilities available:

Utility Help Comment
ab.exe -h Benchmarking tool
abs.exe -h Benchmarking tool - SSL
msmtp.exe --help Mail utility
mysql.exe --help MySQL client - runs SQL commands
mysqladmin.exe --help MySQL admin
mysqldump.exe --help Database dump
openssl.exe Open SSL utility
php.exe -h PHP command line
perl.exe -h Perl command line
Note 1: To display help information, enter utility name followed by the help parameter; for example:
mysqladmin.exe --help
Note 2: If output scrolls off the screen, add pipe "| more". This lets you page through the output by hitting the space bar; for example:
mysqladmin.exe --help | more

Benchmarking tool

Apache Bench (ab) is a simple http load generating tool.
Suppose we want to see how fast localhost can handle 100 requests, with a maximum of 10 requests running concurrently. Enter the following into Server Console:

ab.exe -n 100 -c 10 http://127.0.0.1/

You can target a specific page using the following format, and write the output to a file:

ab.exe -n 100 -c 10 http://127.0.0.1/test.php > test1.txt

Same as above, with keep-alive on:

ab.exe -n 100 -c 10 -k http://127.0.0.1/test.php > test1.txt

You can force the request to use mod_deflate (if available), using the following format:

ab.exe -n 100 -c 10 -H "Accept-Encoding: gzip;" http://127.0.0.1/test.php > test1.txt

Note: Running tests from localhost skews the results; you should always run your benchmarks from another machine.
That said, you might be interested only in comparative results; for example, optimizing a particular piece of code for speed. Running locally will quickly highlight any bottlenecks.
